EN10305-2 26MnB5 Welded Steel Tupe Hollow Stabilizer Bar
Description:
The EN10305-2 26MnB5 Welded Steel Tube Hollow Stabilizer Bar stands out as a robust solution for stabilizing applications, boasting a welded construction for enhanced strength and stability. Crafted from 26MnB5 steel, it offers exceptional durability and resistance to wear and tear. Engineered to precise EN10305-2 standards, this tube ensures reliable performance and structural integrity. With its hollow design, it reduces weight without compromising on strength, making it an ideal choice for demanding stabilizer bar requirements.
| Material | 26MnB5 |
| Other Material Aviliable | 34MnB5 |
| OD | 10-50mm |
| WT | 1.5-8mm |
| Standard | EN10305-2 |
| Technique | Cold Drawn |
| Application | Hollow Stabilizer Bar |
Typical Specification:
Yield Strength: 235-300Mpa
Manufacturing Process:
Hollow Stabilizer Bar Tube is produced by drawing ERW (electric resistance welded tube).During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.
Deliver Condition:
1). +C No heat treatment after the final cold drawing process
2). +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere
Capacity:
| NO. | WeldingTypical Specification | Unit Speed (m/min) | Working Time (Hour) | Capacity (Ton) | Ratio of Total output |
| 1 | Φ34×6 | 18 | 1211 | 11200 | 56% |
| 2 | Φ28×5.2 | 20 | 1522 |
| 3 | Φ38×4.5 | 28 | 883 | 5500 | 27.5% |
| 4 | Φ50.8×2.3 | 60 | 114 | 1130 | 5.6% |
| 5 | Φ55×3 | 50 | 190 | 2170 | 10.8% |
| Total | | | 3920 | 20000 | 100% |
Test:

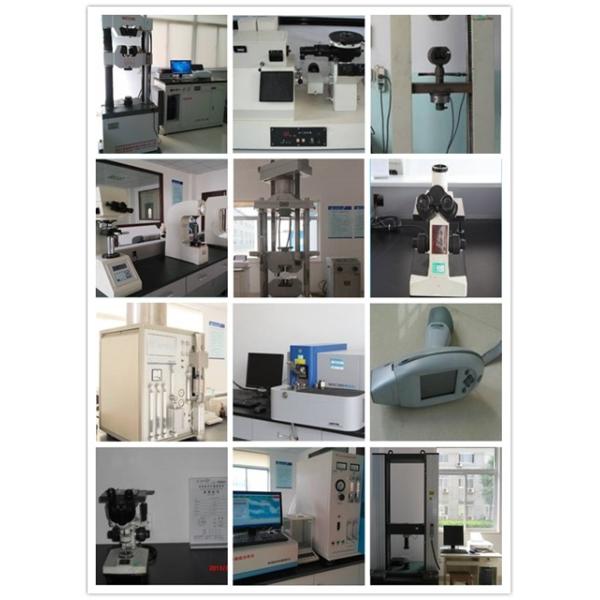

Tubes are controlled 100% by Ultrasonic test, Eddy Current Test. Also we have our own lab to control the quility of material and products.
